Vertical grinding machine

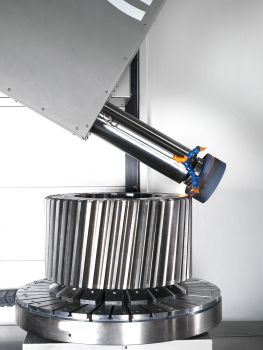

The most suitable for large diameter revolution jobs as motor casings, gears, bearings, turbines and other typical parts for sectors like power conversion, aerospace, marine.
In general any kind of heavy part or light part in need of a heavy tooling that is difficult to be set up and ground in horizontal.
All type of profile grinding options.

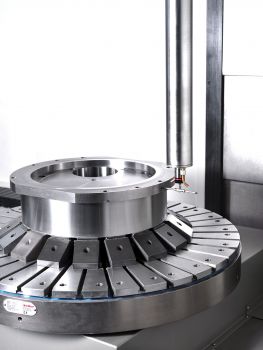

Up to 1800mm diameter table.

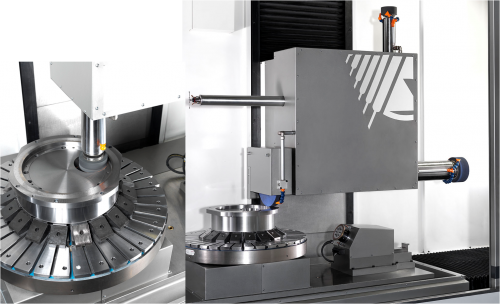

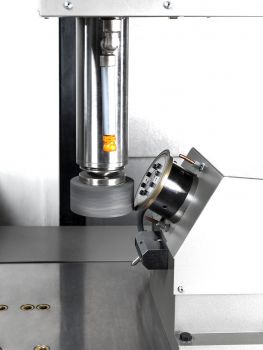

The standard machine wheel head configuration includes a two vertical spindles for internal and external grinding, a horizontal spindle with a surface grinding wheel and a measuring arm, enabling the finishing and measuring of big added value parts in a single set up.
It has several options for the configuration of the wheel head to obtain the necessary power, high revolutions, automatic tool change, turning spindles etc.
The UVG also includes a measuring arm, enabling the finishing and measuring of big added value parts in a single set up
Ask for enquiry
