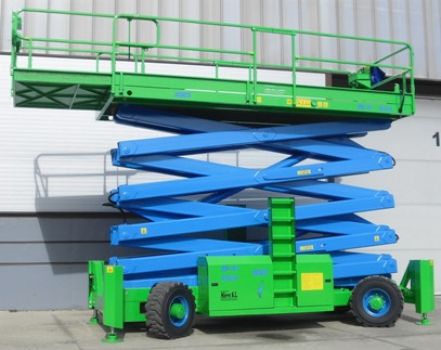

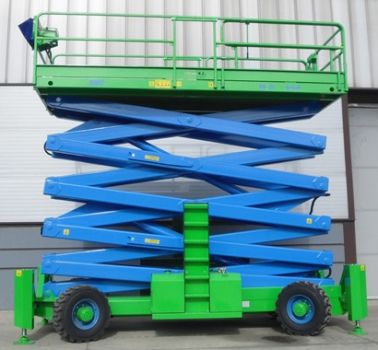

Self propelled scissor lift
EMC
PE-25
| TYPE | Fork |
| MAXIMUM WORKING HEIGHT | 25 m. |
| FLOOR HEIGHT PLATFORM | 23 m. |
| Full length | 5.83 m. |
| WIDTH | 2.48 m. |
| TOTAL / TRANSPORT HEIGHT HEIGHT | 3.35 m. / 2.58 m. |
| DIMENSIONS OF THE PLATFORM | 5'50 x 2.15 |
| LENGTH OF EXTENSION | 1.5 m. |
| MAXIMUM LOAD | 500 kg. |
| NO MAXIMUM OF PEOPLE IN THE PLATFORM | 4 |
| WHEELBASE | 3.92 m. |
| MAXIMUM SLOPE | 30% |
| TILT INDICATOR | 2nd |
| SPEED | 0.5 km / h. 4 km / h |
| MOTOR | Diesel 50 hp. |
| TRACTION AND ADDRESS | 4x4x4 |
| DIMENSIONS OF TIRES | 14 to 17.5 |
| HYDRAULIC TANK | 100 l. |
| FUEL TANK | 100 l. |
| TOTAL WEIGHT | 19500 kg. |
| CERTIFICATION | Regulations "EC" |
| EQUIPMENT | AXIS TILT 1 EXTENSIONS 4 STABILIZERS AUTOMATIC LEVELING |
