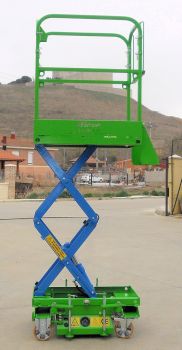

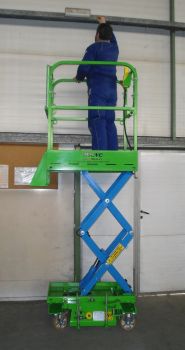

Self propelled scissor lift
EMC
PE-3'7 mini
| TYPE | Fork |
| MAXIMUM WORKING HEIGHT | 3.7 m |
| FLOOR HEIGHT PLATFORM | 1.7 m |
| HEIGHT CHASSIS GROUND | 0.06 m. |
| Full length | 0.95 m. |
| WIDTH | 0.52 m. |
| TOTAL / TRANSPORT HEIGHT HEIGHT | 1.70 m / 0.60 m. |
| DIMENSIONS OF THE PLATFORM | 0.95 x 0.52 m |
| MAXIMUM LOAD | 160 Kg. |
| NO MAXIMUM OF PEOPLE IN THE PLATFORM | One |
| MOTOR | 12 v 800 w |
| BATTERY | 12 v |
| CHARGER | 12 v 7 Ah |
| NUMBER OF WHEELS | 4 |
| TOTAL WEIGHT | 260 Kg. |
| MAXIMUM SPEED WIND | 0 km / h |
| INDICATOR OF DESCENT | ACOUSTIC |
| LIFT TIME | 10 sec. |
