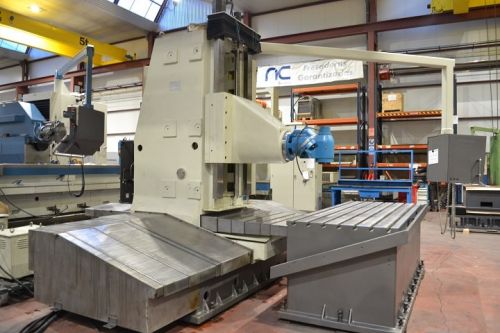

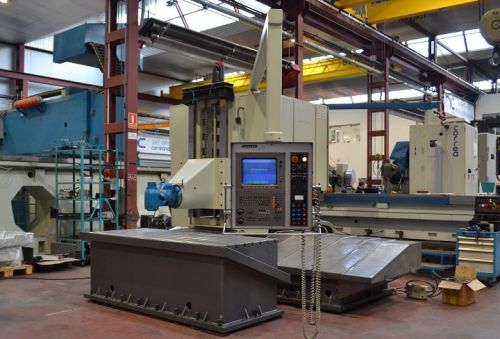

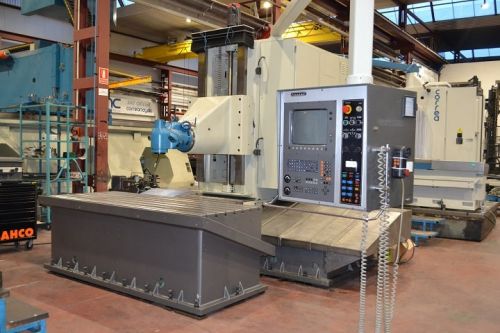

CNC traveling column milling machine ANAYAK HVM-2300

TYPE OF MILLING MACHINE

• Type: Floor type
• Brand: Anayak
• Model: HVM-2300
• Year of manufacture: 1991
• Retrofitted: 2018
• Numerical control: HEIDENHAIN TNC-415

 Download technical data sheetTECHNICAL FEATURESDimensions

• Table dimensions: 2300 x 1000 mm
• Number of slots: 7
• T slots dimensions: 18 mm

Traverses of axis

• X axis traverse: 2.000 mm
• Y axis traverse: 1.000 mm
• Z axis traverse: 1.000 mm

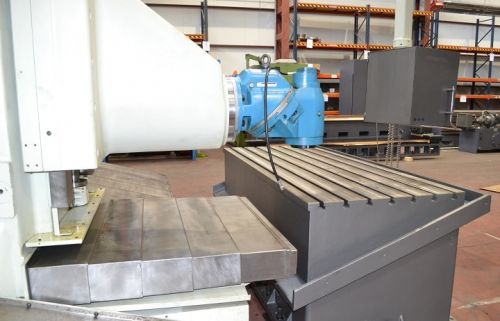

Milling head

• Head type: Universal manual (U22)
• Tool clamping system: Hydraulic
• Taper nose: ISO 50
• Speed range: 60 - 2.000 rpm
• Spindle power: 18/22 kW

Feedrates

• Feedrate: 10 - 3.000 mm/min
• Rapid feedrate: 10.000 mm/min

Weight and dimensions

• Maximum weight on table: 4.000 Kg
• Machine weight: 21.500 Kg
• Machine dimensions: 7.230 x 6.240 x 3.460 mm

Accesories

• Longitudinal chip conveyor
• Guarding

SALES CONDITIONS

• Warranty: 6 months mechanical parts
• Sale price (Ex Work): On request
