NC SERVICE MILLING MACHINES S.A.

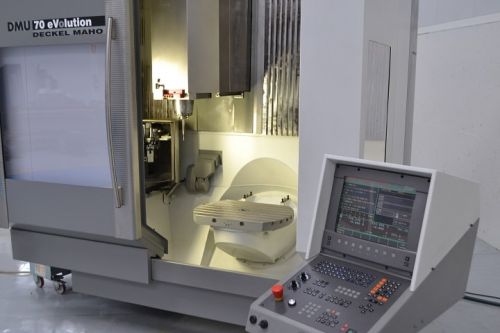

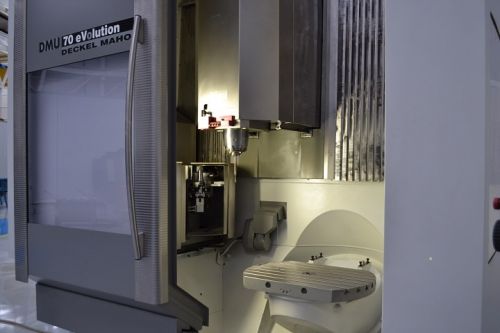

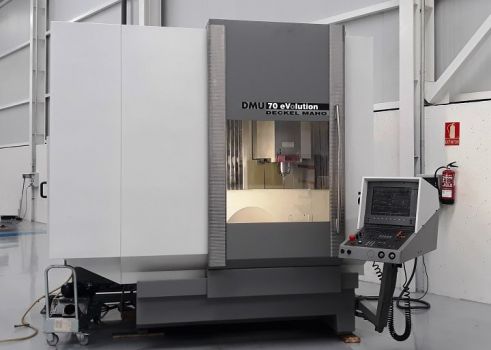

CNC machining center

DECKEL MAHO  DMU 70 eVolutiom
Year: 2001

Used machinery
Ref: 5035703424

5 Axes Vertical Machining Centre



  • Manufacturer: DECKEL MAHO
  • Model: DMU 70 eVolution    (S/n: 15035703424)
  • Year of manufacture: 2001
  • Condition: Ispected
  • Control unit: HEIDENHAIN TNC-426

Traverse of axes:

  • X axis traverse: 800 mm
  • Y axis traverse: 600 mm
  • Z axis traverse: 520 mm

Main drive:

  • Speed range: 20 – 18000 r.p.m.
  • Spindle power (40/100 % ED): 22,5/15 kW
  • Spindle torque (40/100 % ED): 130/87 Nm

Feedrates:

  • Feedrate (X/Y/Z): 0 - 20000 mm/min
  • Rapid feedrate (X/Y/Z): 50 m/min

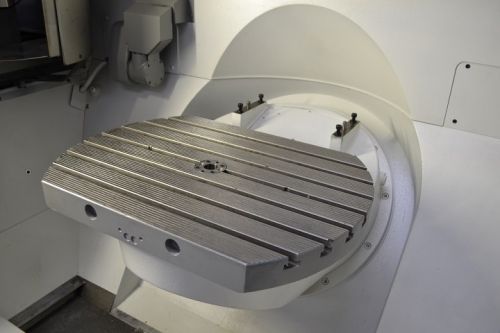

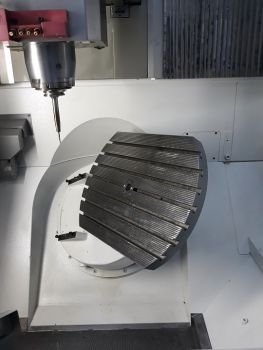

Working table (B+C axes):

  • Table dimensions : Ø 700 x 500 mm
  • Maximum weight on table: 350 Kg
  • T slots (Number / Size / Tolerance): 7 / 14 mm / H7
  • C axis traverse: 360º (resol. 0.001º)
  • B axis traverse: 180º (resol. 0.001º)

Machine:

  • Machine dimensions (LxWxH) : 2574 x 5320 x 2829 mm
  • Machine weight: 8320 Kg

Cone:

  • Taper nose: SK 40 (DIN 69871)

Power supply:

  • Phases | Frequency | Voltage | Power:  3N | PE~50-60Hz | 400/230V | 50 kW

Accesories:

  • External cooling: System for automatic adjustment of the coolant jet height
  • Automatic tool changer: ATC-32
  • Tool max. weight / Tool max. diameter: 6 Kg / 315 mm
  • Electronic handwheel: NEW! HR-510
  • Equipped with tool probe: Reninshaw RP2
  • Option: Part probe: Heidenhain TS631

    Ask for enquiry
