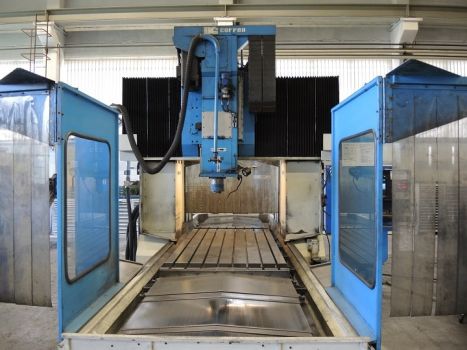

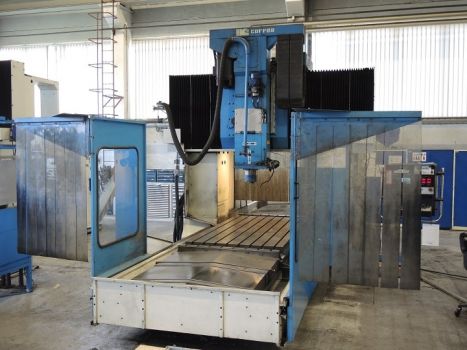

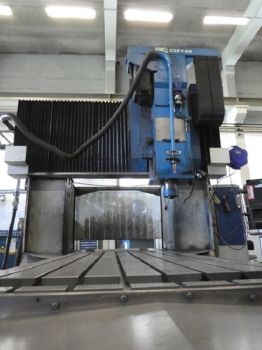

CNC bridge type milling machine CORREA FP30/30

TYPE OF MILLING MACHINE

• Type: Bridge type
• Brand: Correa
• Model: FP30/30

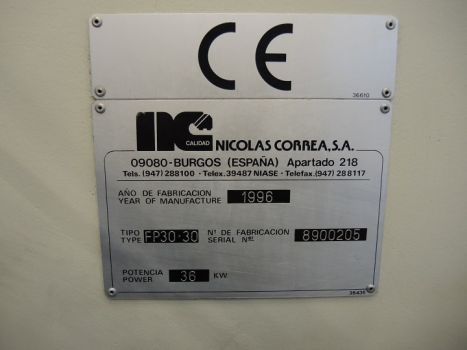

• Year of manufacture: 1996
• Retrofitted: 2019
• Numerical control: HEIDENHAIN TNC-426

TECHNICAL FEATURES

Dimensions

• Table dimensions: 3000 x 1250 mm
• Number of T slots: 8
• T slots dimensions: 22 mm

Traverses of axis

• X axis traverse: 2500 mm
• Y axis traverse: 1800 mm
• Distance between columns: 1680 mm
• Z axis traverse: 800 mm

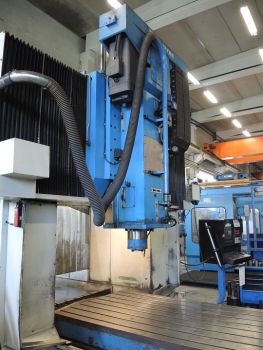

Milling head

• Head type: Standard vertical spindle
• Tool clamping system: Hydraulic
• Taper nose: ISO 50
• Speed range: 20 - 2000 r.p.m.
• Spindle power: 22 kW

Feedrates

• Feedrate: 2 - 5000 mm/min
• Rapid feedrate (X / Y,Z): 15000 / 12000 mm/min

Weight and dimensions

• Max Weight on table: 10000 kg
• Machine weight: 21500 kg
• Machine dimensions: 7300 x 2690 x 3400 mm

Accesories

• Guarding: Yes
• Coolant: External
• Electronic handwheel: HR-330

SALES CONDITIONS

• Warranty: 6 months mechanical parts
• Sale price (Ex Work): On request
