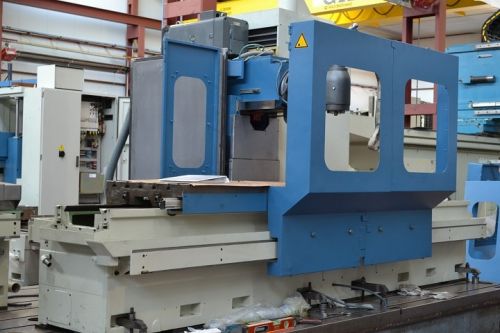

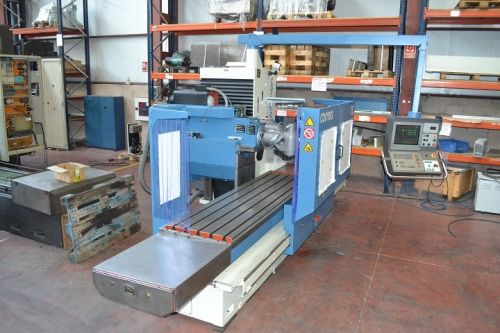

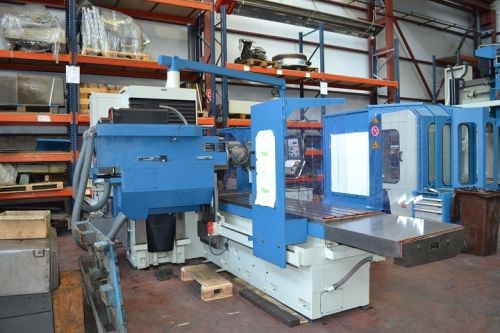

Bed-type CNC milling machine

CORREA  CF22/25

Used machinery
Ref: 9670801

Bed milling machine CORREA CF22/25 (S/n: 9670801)

Year of manufacture: 1997

Condition: Refurbished

Control unit: HEIDENHAIN TNC-407A

Table dimensions: 2500 x 700 mm

Number of slots: 5

T slots dimensions: 22 mm

X axis traverse: 2500 mm

Y axis traverse: 800 mm

Z axis traverse: 800 mm

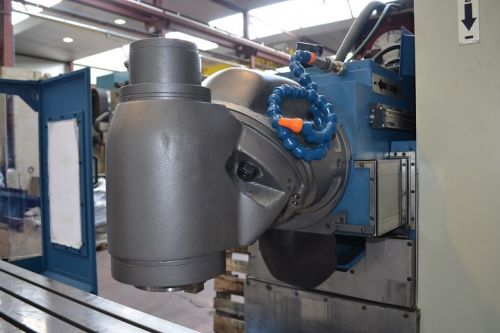

Head type: Universal manual (U22)

Tool clamping system: Hydraulic

Taper nose: ISO50 - DIN2080

Speed range: 20 - 4000 r.p.m.

Spindle power: 22 kW

Feedrate: 5 - 5000 mm/min

Rapid federate (X / Y, Z):  12000 mm/min

Max Weight on table: 4000 kg

Machine weight: 9500 kg

Machine dimensions: 6605 x 2900 x 2760 mm

ACCESSORIES:

Guarding

Electronic handwheel: New! HR-510

Coolant: External

SALES CONDITIONS

Warranty: 6 months mechanical parts

Sale price (Ex Work): On request

Ask for enquiry
