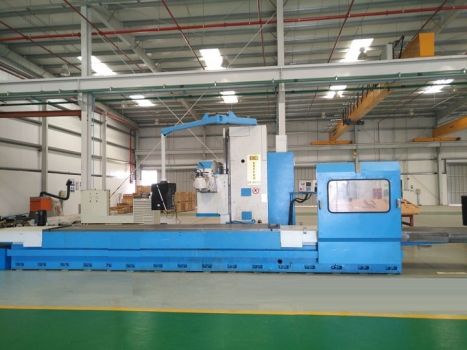

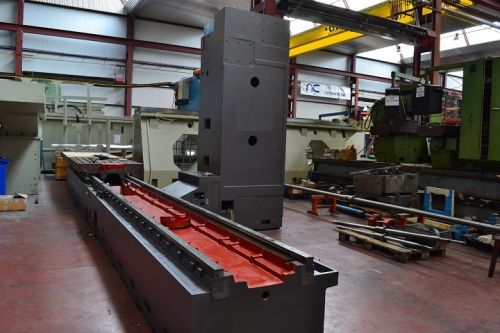

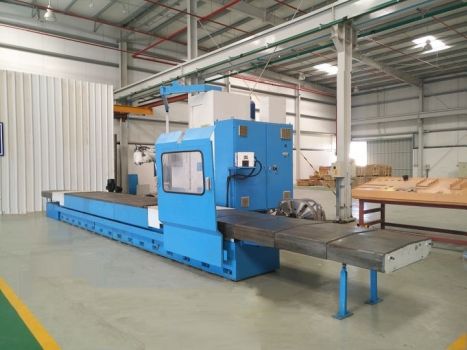

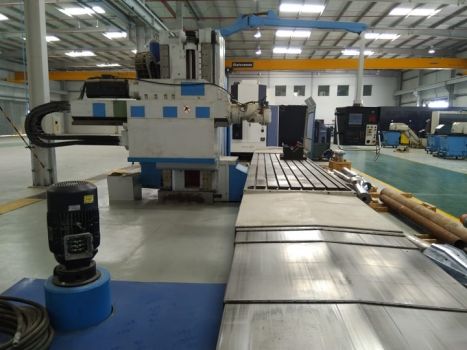

Bed-type CNC milling machine CORREA CF40/50

Bed milling machine CORREA CF40/50 (S/n: 7700212)

Year of manufacture: 1991

Condition: Retrofitted

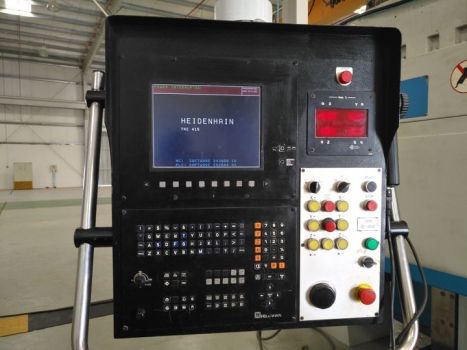

Control unit: HEIDENHAIN TNC-415 (option: New TNC-320)

Table dimensions: 5000 x 1000 mm

Number of slots: 8

T slots dimensions: 22 mm

X axis traverse: 5000 mm

Y axis traverse: 1200 mm

Z axis traverse: 1500 mm

Head type: Universal manual (Option: new UDG (2.5))

Tool clamping system: Hydraulic

Taper nose: ISO50

Speed range: 20 - 2500 r.p.m.

Spindle power: 30 kW

Feedrate: 1 - 5000 mm/min

Rapid federate (X / Y, Z):  15000 mm/min

Max Weight on table: 12000 kg

Machine weight: 27000 kg

Machine dimensions: 5200 x 2900 x 2760 mm

ACCESSORIES:

Electronic handwheel:  HR-410

Guarding

SALES CONDITIONS:

Warranty: 6 months mechanical parts

Sale price (Ex Work): On request
