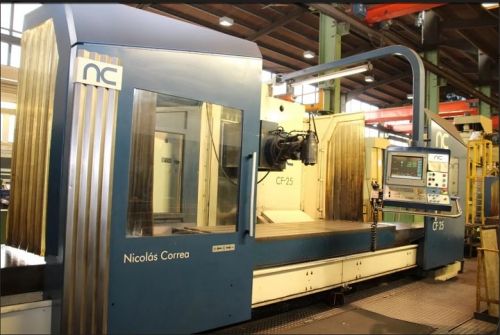

Bed-type CNC milling machine CORREA CF25/25

TYPE OF MILLING MACHINE

• Type: Bed type
• Brand: Correa
• Model: CF25/25
• Year of manufacture: 2004
• Retrofitted: 2018
• Numerical control: HEIDENHAIN TNC-530

 TECHNICAL FEATURES

Dimensions

• Table dimensions: 2800 x 1000 mm
• Number of slots: 5
• T slots dimensions: 22 mm

Traverses of axis

• X axis traverse: 2500 mm
• Y axis traverse: 1000 mm
• Z axis traverse: 1000 mm

Milling head

• Head type: Universal manual (U22)
• Tool clamping system: Hydraulic
• Taper nose: ISO 50 – DIN 69871
• Speed range: 20 – 4000 rpm
• Spindle power: 22 kW

Feedrates

• Feedrate: 5 - 5000 mm/min
• Rapid feedrate: 20000 mm/min

Weight and dimensions

• Max Weight on table: 6000 kg
• Machine weight: 20000 kg
• Machine dimensions: 7750 x 3100 x 4400 mm

Accesories

• Electronic handwheel:  HR-410
• Guarding

SALES CONDITIONS

• Warranty: 6 months mechanical parts
• Sale price (Ex Work): On request
