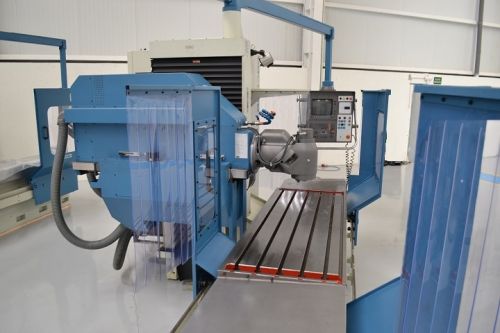

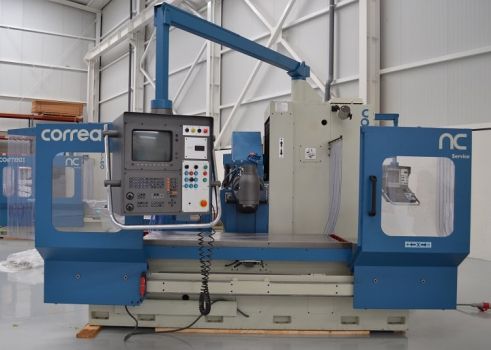

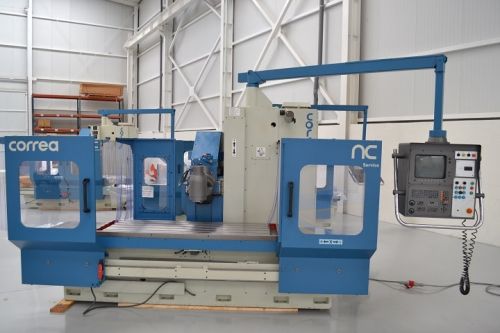

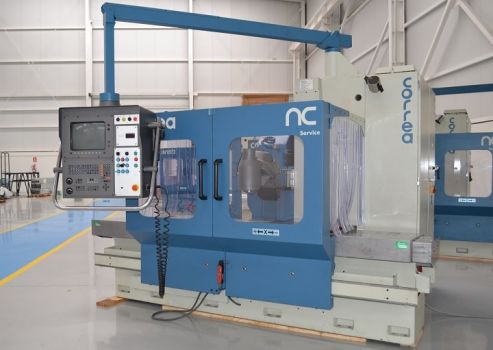

Bed-type CNC milling machine CORREA CF22

TYPE OF MILLING MACHINE

• Type: Bed type
• Brand: Correa
• Model: CF22
• Year of manufacture: 1996
• Retrofitted: 2018
• Numerical control: HEIDENHAIN TNC-426

TECHNICAL FEATURES

Dimensions

• Table dimensions: 2000 x 700 mm
• Number of T slots: 5
• T slots dimensions: 22 mm

Traverses of axis

• X axis traverse: 2000 mm
• Y axis traverse: 800 mm
• Z axis traverse: 800 mm

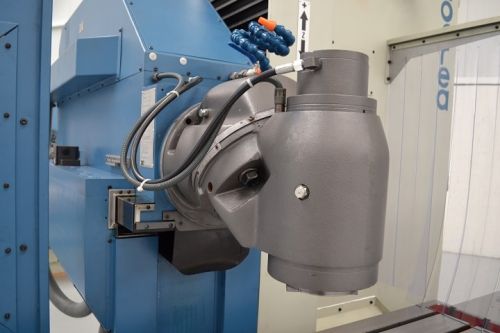

Milling head

• Head type: Universal manual
• Tool clamping system: Hydraulic
• Taper nose: A50 DIN69871
• Speed range: 20 - 4000 r.p.m.
• Spindle power: 22 kW

Feedrates

• Feedrate: 5 - 5000 mm/min
• Rapid feedrate: 12000 mm/min

Weight and dimensions

• Maximum weight on table: 3500 Kg
• Machine weight: 9000 Kg
• Machine dimensions: 5200 x 2900 x 2760 mm

Accesories

• Electronic handwheel: HR-410
• Guarding

SALES CONDITIONS

• Warranty: 6 months mechanical parts
• Sale price (Ex Work): On request
