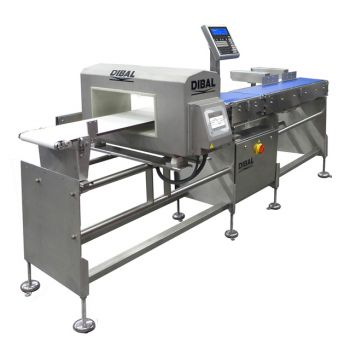

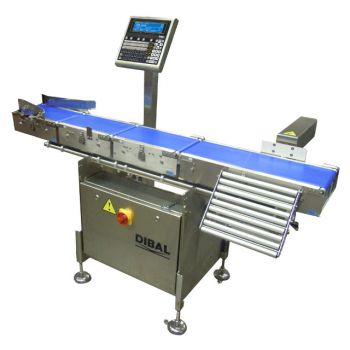

Automatic weight controller DIBAL CW-4000

Automatic equipment to check that a product’s weight is within a defined weight range.

Dibal CW-4000 automatic checkweigher, with optional rejection system, checks the correct weight of products without stopping the production line. If the weight is above or below the set range the equipment automatically rejects the product.

OUTSTANDING FUNCTIONS

• Discrimination by weight checking.
• Orders management.

WEIGHING

• Type of weighing:
  • Dynamic or static.
• Ranges depending on the dimensions of the weighing conveyor:
  • 6 kg / 2 g or 10 kg / 5 g with conveyor of up to L400 x W400 mm.
  • 15 kg / 5 g, 20 kg / 10 g, 30 kg / 10 g, 40 kg / 20 g or 60 kg / 20 g with conveyor of up to L600 x W500 mm.
  • 3 kg / 1 g or others, contact us.

REJECTION SYSTEM (OPTIONAL)*

• Rejection system type
  • “Air-jet®”.
  • Pneumatic piston.
  • Rotating blade.
  • Folding conveyor.
• Number of rejectors:
  • 1 or 2.
• Position of the 2 rejectors:
  • They can be located on the same side or opposite sides.

* All the rejection systems (pneumatic piston, "Air-jet®", etc.) depend on the type of product/packaging, required speed, collection system, etc.; please always check with Dibal.

CONSTRUCTION

• Structure:
  • AISI 304 stainless steel and anodized aluminium.
• Belts:
  • Material and characteristics: Polyurethane, rigid or elastic depending on the equipment range. With FDA approval.
• Console:
  • Material: stainless steel.
  • “Qwerty” keypad and graphic backlit LCD display.
  • 15” TFT touch screen, optional.

COMMUNICATION TO PC

• Ethernet TCP/IP.
• RS-232.

PC SOFTWARE

• RMS: For equipment configuration, production data management and back up (LBS).
• DCS: For production data management.
• Integration tools: See section on software.

POWER SUPPLY & COMPRESSED AIR

• Electrical: 230 V/50 Hz; 115 V/60 Hz.
• Air: max. 150 l/min (at 5-8 bar) (if rejection system is included).

POSSIBLE INTEGRATION WITH OTHER EQUIPMENT

• Dibal LS-4000 automatic weigh-price labeller.
• Aligner.
• Misaligner.
• 90º deflector.
