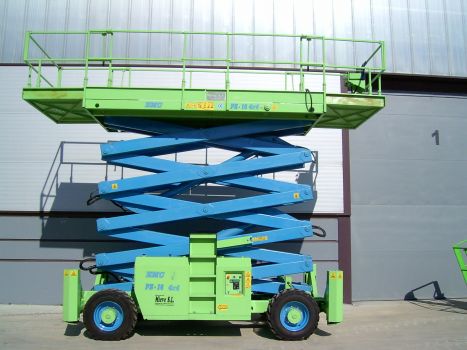

Self propelled scissor lift

EMC  PE-18

Type

Fork

Maximum Working Height

18 m.

Height of Floor Platform

16 m.

Full Length

4.22 m.

Width

2.30 m.

Height

2.97 m.

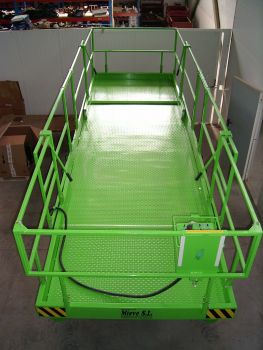

Dimensions Platform

3.90 x 1.88 m.

Extension Length (DOS)

1m.

Maximum Load Capacity

500 Kg.

Maximum Number of People in the

Platform

4

Wheelbase

2.75 m.

Slope

30%

Tilt Indicator

3rd

Translating Speed

0.5km / ha 4km / h

Engine

Diesel 30 hp.

Traction

4x4

Tire Dimensions

12 to 16.5

Hydraulic reservoir

100 lts.

Fuel tank

65 lts.

Total Weight

7900 Kg.

Quality Certification

rules "CE"

Equipment

Axis Tilting two extensions 4 Stabilizers

This data sheet belongs to the next category:
Aerial work platforms
