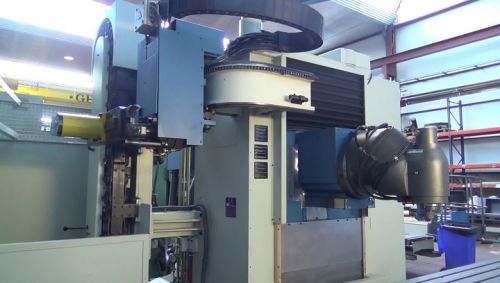

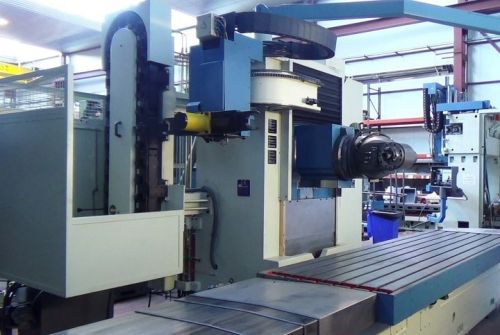

Bed-type CNC milling machine CORREA A25/25

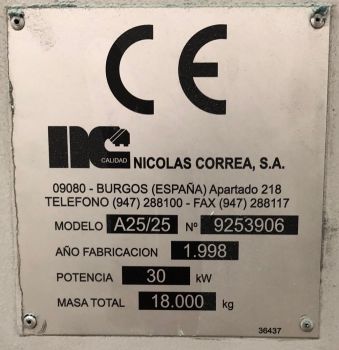

Bed type milling machine CORREA A25/25 (9253906)

Year of Manufacture: 1998

Condition: Refurbished

New! HEIDENHAIN TNC-320.

Table dimensions: 3500 x 1000 mm

Number of T slots: 7

T slots dimensions: 22 mm

X axis traverse (mm): 3000

Y axis traverse (mm): 1200

Z axis traverse (mm): 1500

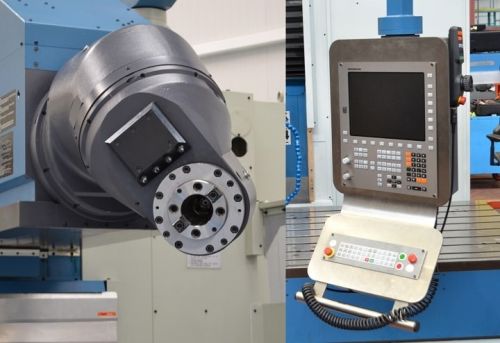

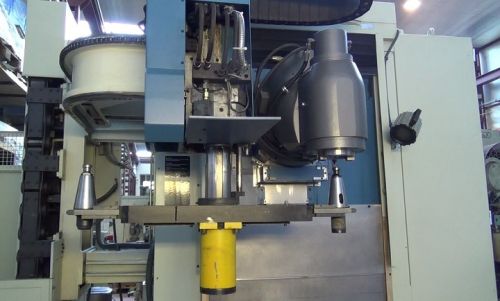

Head type: New! Auto-indexing UDG (2,5º)

Tool clamping system: Hydraulic

Taper nose: ISO 50 (DIN69871)

Speed range: 20 - 3000 r.p.m.

Spindle power: 22 kW

Feedrate: 5 - 5000 mm/min

Rapid feedrate (X / Y, Z): 8000 mm/min / 10000 mm/min

Max weight on table: 7000 kg

Machine weight: 18000 kg

Machine dimensions: 6590 x 4920 x 2700 mm

ACCESSORIES:

Guarding

Automatic tool changer: ATC-30

Electronic handwheel: New! HR-510

Coolant: External. High pressure internal through spindle

Warranty: 6 months mechanical parts

Sale price (Ex Work): On request
